Burrow Hill Gun (13A21)

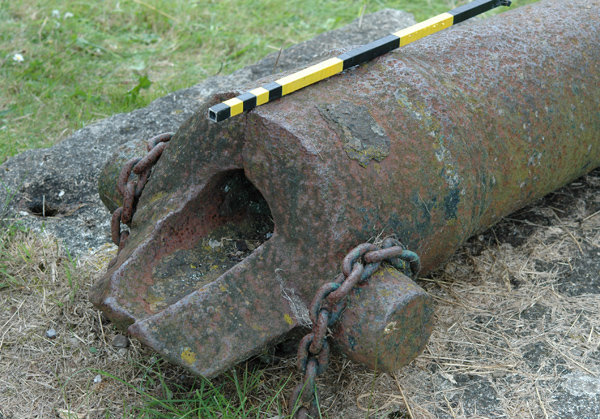

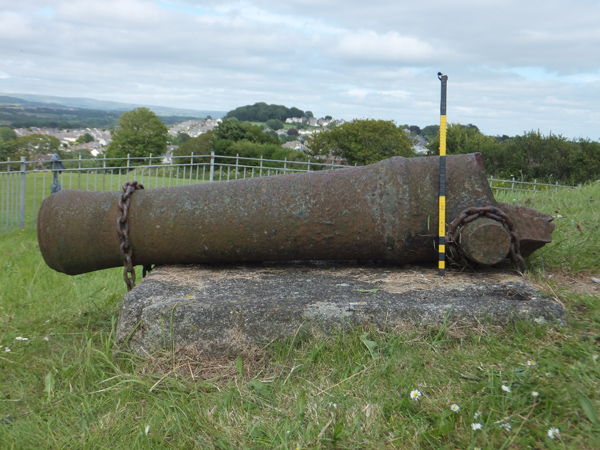

This gun is mounted on a war memorial on Burrow Hill in Plymstock. The breech of the gun aft of the trunnions is missing, it appears to have been damage ins ervice rather than a deliberate cut. The origin of the gun is not known.
Base ring to muzzle |
Not possible |
Overall length |
Not possible |
Base ring diameter |
Not possible. |
Muzzle face to trunion |
1186mm |
Trunnion offset |
184mm, 118mm |
Trunnion diameter |
950mm |
Bore |
113mm |
Muzzle swell diameter |
250mm |
Trunnion width |
480mm, Tapered |
If you have any more information about these finds then please contact us.
